Qingdao Lenado Intelligent Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of cng mother station equipment in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk customized cng mother station equipment from our factory.
Product Highlights & Key Features
Advanced Hydraulic Piston Drive System
Unlike traditional mechanical compressors, our CNG mother station compressors utilize a hydraulic drive system . This ensures a smoother compression stroke, higher transmission efficiency, and significantly reduced vibration. The hydraulic system adapts automatically to pressure changes, ensuring stable operation even under fluctuating inlet pressures.
100% Oil-Free Compression Technology
The piston lubrication is designed to be completely oil-free . This guarantees that the compressed natural gas (CNG) is free from oil contamination, which is critical for mother stations supplying gas to transport tankers and sub-stations. It protects downstream vehicle engines and reduces maintenance costs for the entire gas network.
High Efficiency & Large Capacity
Designed specifically for high-volume gas transmission, these units feature 2-3 stage compression capable of handling inlet pressures from 2.5 to 4.0 MPa and discharging at 21 MPa. With capacities ranging from 3500 to 5200 Nm³/h , they are optimized for rapid filling of CNG transport tankers, maximizing throughput for the station.
Intelligent Control & Remote Monitoring
Equipped with a PLC control system, touch screen interface, and soft starter , the equipment allows for precise operation and easy monitoring. It supports integration with the Genketech Company Remote Management System , enabling real-time data analysis and remote troubleshooting, ensuring unmanned or low-manpower operation efficiency.

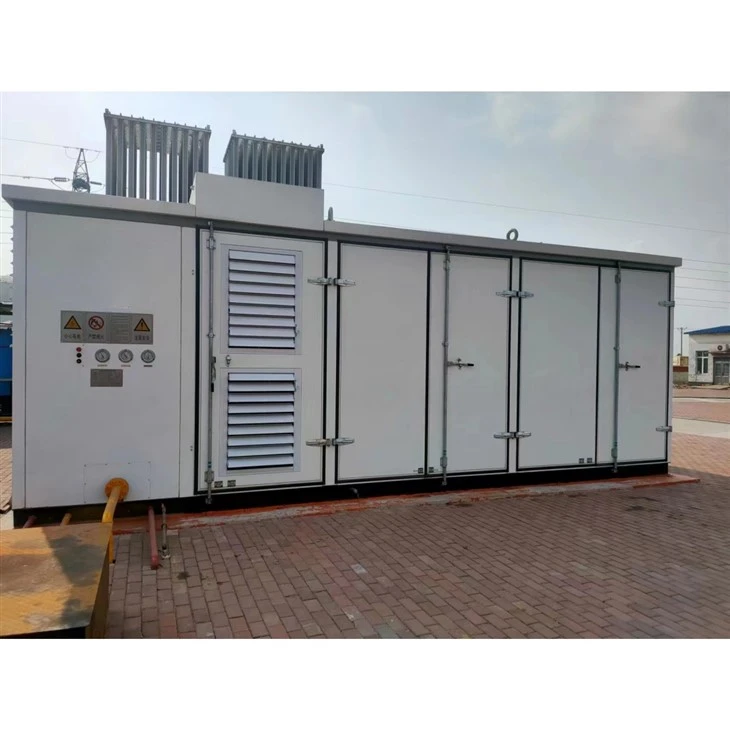

Integrated Skid-Mounted Design & Low Noise
The equipment features an integrated skid-mounted structure , making installation quick and easy. It utilizes water circulation air cooling and is housed in a soundproof enclosure, keeping noise levels ≤85dB(A) at 1 meter. This makes it environmentally friendly and suitable for mother stations located near residential or commercial areas.
Technical Specifications
|
No. |
Model |
Inlet Pressure (MPa) |
Discharge Pressure (MPa) |
Avg. Displacement (Nm³/h) |
Compression Stages |
Main Shaft Power (kW) |
|
1 |
TYCM3500 |
2.5-3.0 |
21 |
3500 |
2-stage |
330 |
|
2 |
TYCM5200 |
3.5-4.0 |
21 |
5200 |
2-stage |
400 |
Note: Other working conditions and displacement capacities can be customized upon request.
Model Description:
* TY : Genketech
* C : CNG
* M : Mother Station Compressor
