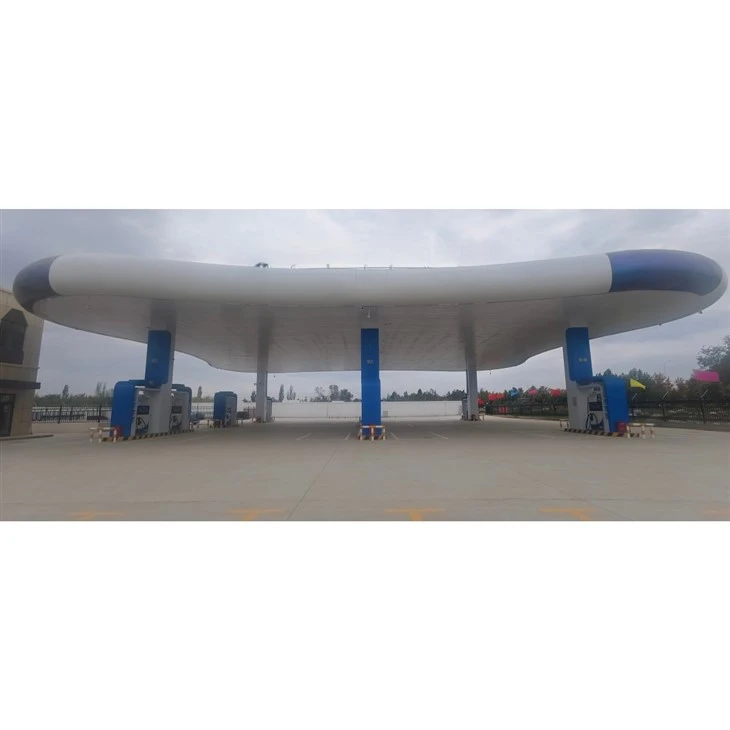

Open CNG Gas Station

Qingdao Lenado Intelligent Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of open cng gas station in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk customized open cng gas station from our factory.

Open CNG Gas Station | Outdoor Skid-Mounted Natural Gas Refueling Systems

✅ Weatherproof Outdoor Enclosure | ✅ Noise Reduction <75dB @ 1m | ✅ Modular Skid Design | ✅ Quick Deployment & Easy Maintenance | ✅ ATEX/CE Certified Explosion Protection

Our open CNG gas station solutions deliver robust, outdoor-ready natural gas refueling systems engineered for harsh environments and rapid deployment. Featuring integrated skid-mounted compressors housed in weatherproof, sound-insulated enclosures, these stations operate reliably in temperatures from -40°C to +55°C without requiring permanent buildings or extensive civil works.

The modular box design incorporates multi-layer acoustic insulation (high-frequency absorption + low-frequency blocking), electrostatic-sprayed corrosion-resistant panels, and an integrated rainproof roof with sealed joints. All electrical components meet ExdeIIBT3/ExdIIBT4 explosion-proof standards, while the water-circulating air cooling system ensures stable operation in extreme climates using ethylene glycol antifreeze.

Ideal for mining sites, ports, construction camps, and remote fleet depots, our open CNG gas stations combine 2,500 Nm³/h compression capacity with fully automated PLC control, remote monitoring via TCP/IP, and dual-system redundancy for uninterrupted 24/7 service.

1. Weatherproof Outdoor Enclosure Design

The integrated skid box features an electrostatic-sprayed exterior (after pickling, rust removal, and sandblasting) for superior corrosion resistance. Panel joints and door seams are fully sealed to prevent water ingress and noise leakage. The integrated roof design eliminates leakage risks, enabling reliable operation in rain, snow, dust, and high-humidity environments.

2. Advanced Noise Reduction <75dB @ 1m

Multi-layer sound insulation materials inside the enclosure absorb high-frequency noise and block low-frequency transmission. The frame structure minimizes panel vibration, while the self-ventilating design maintains cooling efficiency without compromising acoustic performance. Measured noise levels remain ≤75 dB(A) at 1 meter-suitable for urban, residential, and noise-sensitive locations.

3. Modular Skid Construction for Rapid Deployment

All components-hydraulic system, compression cylinders, cooling units, PLC cabinet, dispensers, and storage cascade-are pre-assembled on a single detachable skid. Connection pipelines and equipment mounts use quick-release fittings, enabling transport by truck, rail, or barge. Site preparation requires only a level concrete pad and utility connections; commissioning completes within 3-5 days.

4. Easy Maintenance Access & Serviceability

Movable access doors on all sides of the skid enclosure provide full access to compressors, filters, valves, and electrical panels without disassembly. The modular design allows individual component replacement without system shutdown. Integrated explosion-proof lighting and self-ventilation support safe nighttime or indoor maintenance.

5. Explosion-Proof Electrical Systems for Outdoor Safety

All motors, control cabinets, and junction boxes comply with ExdeIIBT3/ExdIIBT4 or ATEX standards. Cables between main motors and explosion-proof boxes route through galvanized steel pipes; other cables use plastic-clad metal hoses for vibration and corrosion resistance. Anti-surge protectors and ESD interfaces ensure coordinated emergency shutdown with station-wide safety systems.

Core Compression & Hydraulic System

Compression Cylinders: DRY1000 Series Hydraulic Reciprocating Double-Force Design (Genketech Gas)

Hydraulic Pumps: Hengyuan Hydraulics 32 MPa / 1480 r/min / 160ml/r Capacity

Ex-Proof Motors: Shandong Zotye 45kW–110kW (dIIBT4 / ATEX Certified)

Soft Starters: RF-45/37K for Smooth, Grid-Friendly Motor Startup

Control & Automation

PLC Controller: Siemens S7-200Smart / CP1H-XA40D Series

HMI Touchscreen: Siemens Smart700 7" True-Color LCD

Communication: MODBUS RTU (RS485), TCP/IP, DRNET Remote Monitoring Platform

Software: Lifetime Free Upgrades, Fault Logging up to 100 Million Cycles

Safety & Monitoring

Gas Detectors: ESD100 Combustible Gas Probes (15% LEL Fan Start / 25% LEL Auto Shutdown)

Pressure/Temperature Sensors: 0–40 MPa Transmitters, Oil Level/Temp Monitoring

ESD Interface: External Emergency Stop Compatible with Station-Wide Control

Safety Valves: A21F-320C High-Pressure Relief with Manual Bypass for Maintenance

Enclosure & Environmental Protection

Frame Structure: Square Steel & Channel Steel Bolted Assembly for Rigidity

Acoustic Insulation: Multi-Layer Sound-Absorbing Materials (High-Frequency Absorption + Low-Frequency Blocking)

Surface Treatment: Pickling → Rust Removal → Sandblasting → Electrostatic Spraying

Rainproof Design: Integrated Roof with Sealed Panel Joints & Door Seams

Ventilation: Self-Ventilating Design with Explosion-Proof Lighting

Sealing & Filtration (Premium Brands)

O-Rings: Parker Fluorine Rubber (USA)

Piston & Rod Seals: SKF DR1000-QH/QG (Austria) / Parker DR1000-YG (USA)

Oil Seals: Simrit DR1000-YH (Germany)

Inlet Gas Filter: 50 μm Precision Particulate & Moisture Removal

Return Oil Filter: 10 μm Magnetic Filter for Metal Particle Capture

Dispensing & Storage Integration

CNG Dispensers: JQD-B30B(3MSW) Three-Line Dual-Hose (1–20 Nm³/min, ±1.0% Accuracy)

Mass Flow Meters: E+H 8FF15/8FF25 Stainless Steel

Storage Cascade: ZIP-270 Cylinders (1.5 m³ Water Volume @ 250 bar)

Unloading Post: CSXQZD11 Single-Hose (1–56 kg/min Flow Rate)

Break-Away Valves: ART-LOK NPT3/8 for Hose Safety

Explosion Protection & Certification

Electrical Enclosures: ExdeIIBT3 / ExdIIBT4 per ATEX Directive 2014/34/EU

CE Marking: Compliant with EU Machinery Directive & EMC Directive

Pressure Vessels: GB 150.2-2011 / ISO 9809 / ASME Section VIII Div.1

High-Pressure Piping: 06Cr19Ni10 Stainless Steel per GB/T14976-94 / ASME B31.3

Multi-Layer Safety Logic for Outdoor Operation

Gas Detection & Ventilation: Automatic exhaust fan activation at 15% LEL, complete shutdown at 25% LEL

Weather-Resistant Electrical Design: Galvanized steel conduit for main motor cables; plastic-clad metal hoses for auxiliary wiring

ESD Integration: External emergency stop interface accepts station-wide ESD signals for coordinated power & pipeline isolation

Temperature & Level Monitoring: Automatic alarm and shutdown on abnormal oil temperature, oil level, or cooling system failure

Hydraulic Over-Pressure Protection: Relief valves prevent system pressure exceeding 315 bar

Anti-Static & Grounding: All metallic components bonded and grounded per NFPA 52

Zero Contamination Guarantee

Oil-Free Compression: Unique three-stage cylinder design with physical barrier between gas and oil chambers

No Post-Filtration Required: Gas purity maintained without downstream oil-gas separators

Seal Failure Protection: Even with complete seal degradation, oil cannot enter gas stream due to pressure differential design

Environmental Protection

Noise Reduction: Multi-layer sound insulation achieves <75 dB @ 1m, suitable for residential and urban zones

Rain & Weather Protection: Integrated roof design with sealed panel joints, IP54 enclosure rating

Zero Emissions: Closed-loop cooling system with ethylene glycol antifreeze, no wastewater discharge

Mining & Remote Industrial Sites

Ideal for open-pit mines, drilling camps, and mineral processing facilities without pipeline access. The weatherproof skid design withstands dust, vibration, and extreme temperatures while delivering reliable CNG fueling for haul trucks, loaders, and support vehicles.

Port & Logistics Hub Operations

Outdoor-mounted open CNG gas stations serve container terminals, freight yards, and port vehicle fleets. Modular skid construction allows relocation as terminal layouts change; dual-hose dispensers enable simultaneous fueling of two vehicles at 1–20 Nm³/min flow rates.

Construction & Infrastructure Projects

Temporary or semi-permanent fueling for heavy equipment fleets on highway, rail, or energy projects. Rapid deployment within 48 hours of site preparation; detachable connections simplify relocation when projects complete.

Agricultural & Seasonal Operations

Support CNG-powered tractors, harvesters, and transport vehicles during peak seasons. The enclosed skid design protects equipment from field dust, moisture, and temperature swings while maintaining <75 dB noise levels near residential farmland.

Emergency & Disaster Response

Deployable fueling units for emergency services, military operations, or humanitarian relief. Weatherproof enclosure ensures operation in rain, snow, or high-wind conditions; integrated storage cascade reduces dependency on continuous trailer supply.

Urban Fleet Depots with Space Constraints

Compact skid footprint (4.35×2.3×2.65 m) fits constrained urban sites where permanent buildings are impractical. Noise reduction and weatherproofing enable installation near residential zones without special permits.

Warranty Coverage

Standard Warranty: 12 months from commissioning or 2 months from delivery (whichever occurs first). Extended 24-month warranty available for containerized models.

Coverage: Manufacturing defects in compressors, PLC systems, hydraulic components, enclosure structure, and weatherproofing elements.

Exclusions: Normal wear items (seals, filters, O-rings), improper operation, force majeure events.

Included Spare Parts Package

Each unit ships with comprehensive spare parts kit:

Solenoid valves (medium pressure) × 1 set

Pressure transmitters (0–40 MPa) × 1 set

Circuit breakers (various ratings) × 6 units

Contactors (GMC-9, GMD-25) × 2 units

Relays × 2 units

O-rings (rubber) × 30 pieces

Check valves × 4 units

Analog I/O panels × 2 units

Operating handles × 1 set

Commissioning & Training

On-Site Commissioning: Certified engineers travel to your location for installation supervision, system testing, and performance validation in outdoor conditions

Operator Training: 3-day comprehensive training covering PLC operation, safety procedures, routine maintenance, and troubleshooting in open-air environments

Documentation: Complete operation manuals, electrical schematics, P&ID diagrams, and maintenance schedules in English

24/7 Remote Monitoring: DRNET software enables real-time performance tracking, fault diagnosis, and predictive maintenance alerts via internet connection

Free Lifetime Software Upgrades: PLC control software, HMI interface, and communication protocols updated at no charge

Technical Hotline: Email and phone support with 24-hour response time for critical issues

Video Troubleshooting: Remote video calls with engineers for complex diagnostic procedures in field conditions

Climate Packages: Arctic (-40°C) or tropical (+55°C) operating temperature configurations with enhanced antifreeze and cooling capacity

Enhanced Enclosure Options: Additional insulation, heating elements, or HVAC integration for extreme environments

Corrosion Protection: Marine-grade coatings or stainless steel upgrades for coastal/port installations

Noise Reduction Upgrades: Additional acoustic layers or vibration isolators for ultra-quiet urban deployments

Lighting & Safety Add-Ons: Explosion-proof work lights, emergency egress signage, or fire suppression integration
