Portable CNG Fueling Station | MRU-2000 Mobile Refueling Unit

✅ 20ft Container-Integrated Design | ✅ 2,000 Nm³/h High-Throughput | ✅ Oil-Free Hydraulic Compression | ✅ Dual Dispensers + Unloading Post | ✅ ATEX/CE Certified Safety

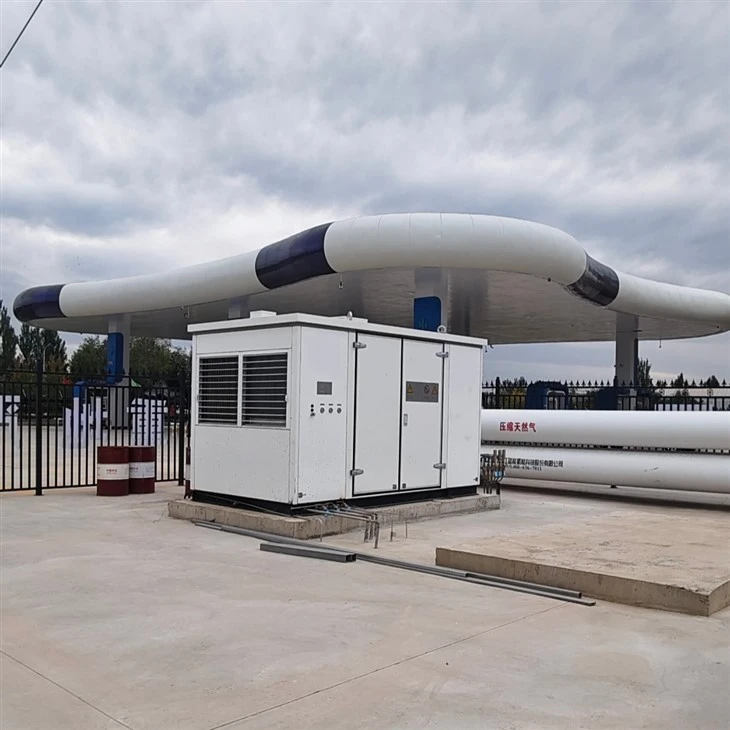

Our portable CNG fueling station (Model: ZXRY1000-II) is a complete mobile refueling unit (MRU) engineered for rapid deployment in remote locations, fleet operations, and temporary gas supply projects. All critical components-including the DRY1000 hydraulic piston compressor, 1.5m³ CNG storage cascade, dual-hose dispensers, single-hose unloading post, and Siemens PLC control system-are pre-integrated into a waterproof 20ft ISO container (6058×2438×2600mm).

With a designed refilling capacity exceeding 20,000 Nm³/day (based on 10+ hours operation), this portable CNG fueling station accepts trailer-supplied CNG at 30–250 bar inlet pressure and delivers vehicle-grade gas at ≤250 bar. The oil-free lubrication technology ensures zero contamination of compressed gas, while the two-stage hydraulic compression system achieves industry-leading energy efficiency with only 2×45kW motor power. Ideal for mining sites, construction camps, emergency response, and areas without pipeline infrastructure.

1. Fully Integrated 20ft Container Design

All components-compressor, storage cascade, dispensers, unloading post, PLC cabinet, and cooling system-are factory-assembled on a single detachable skid inside a weatherproof 20ft container. Connection pipelines and equipment mounts use quick-release fittings, enabling transport by truck, rail, or barge. Site preparation requires only a level concrete pad and utility connections; full commissioning completes within 3–5 days.

2. Oil-Free Hydraulic Compression & Zero Contamination

The unique DRY1000 compression cylinder design physically separates the gas chamber from the hydraulic oil chamber using multi-stage sealing (Parker/SKF/Simrit). Even in the event of seal degradation, oil cannot enter the gas stream. Post-compression oil content remains close to 0 ppm, eliminating the need for downstream oil-gas separators and protecting dispensers, vehicle pipelines, and engines from carbon buildup.

3. Instant Start Without Depressurization

Unlike traditional mechanical compressors that must vent cylinder pressure before startup to reduce motor torque, our hydraulic drive system isolates motor operation from compression cylinders. The unit starts instantly at full pressure with zero gas waste, reducing compressor cycling by up to 20% and improving daily throughput.

4. Dual-Hose Dispensing + Single-Hose Unloading

Equipped with two JQD-B30B(3MSW) three-line dual-hose dispensers (1–20 Nm³/min flow rate, ±1.0% accuracy) and one CSXQZD11 single-hose unloading post (1–56 kg/min), the MRU supports simultaneous fueling of two vehicles while efficiently transferring gas from tube trailers. The three-line cascade refueling logic maximizes trailer gas utilization, reducing compressor runtime and electricity costs.

5. Fully Automated PLC Control & Remote Monitoring

Siemens CP1H-XA40D PLC with Smart700 touchscreen manages auto-start, pressure sequencing, cascade storage switching, and fault diagnostics. The integrated DRNET remote service platform enables real-time performance tracking, predictive maintenance alerts, and free lifetime software upgrades via TCP/IP or 4G/5G connectivity-reducing manual intervention and downtime.

Core Compression & Hydraulic System

Compression Cylinders: DRY1000 Series Hydraulic Reciprocating Double-Force Design (Genketech Gas, China)

Hydraulic Pump: A7V 160, 160ml/r capacity, 37kW axle power, 315 bar max working pressure (Hengyuan Hydraulics, China)

Ex-Proof Motors: YB35-225S-4 45kW, dIIBT4 / ATEX Certified (Shandong Zotye, China)

Soft Starters: RF-45/37K for smooth, grid-friendly motor startup

Control & Automation

PLC Controller: Siemens CP1H-XA40D (Germany)

Ethernet Module: CP1W-CIF41 for TCP/IP remote communication

HMI Touchscreen: 7" True-Color LCD (China)

Remote Service Software: DRNET platform for internet-based diagnostics & free lifetime upgrades

Communication Protocols: MODBUS RTU (RS485), TCP/IP for SCADA integration

Safety & Monitoring

Gas Detectors: ESD100 Combustible Gas Probes (15% LEL fan start / 25% LEL auto shutdown)

Pressure Transmitters: RZ25 / CEMPX203 (0–40 MPa range, stainless steel)

Safety Valves: A21F-320C-20-G 3/4 High-Pressure Relief with manual bypass

ESD Interface: External emergency stop compatible with station-wide control systems

Temperature/Oil Level Sensors: Real-time monitoring with automatic alarm/shutdown

Dispensing & Storage System

CNG Dispensers: JQD-B30B(3MSW) Three-Line Dual-Hose, Exibdme II AT4 / CE / ATEX

Mass Flow Meters: E+H 8FF15 Stainless Steel (±1.0% accuracy)

Storage Cascade: ZIP-270 Cylinders, 1.5 m³ water volume @ 250 bar

Unloading Post: CSXQZD11 Single-Hose, E+H 8FF25 flow meter, 1–56 kg/min

Break-Away Valves: ART-LOK NPT3/8 for hose safety

Sealing Components (Premium International Brands)

O-Rings: Parker Fluorine Rubber (USA)

Piston Seals: SKF DR1000-QH/QG (Austria)

Piston Rod Seals: Parker DR1000-YG (USA)

Piston Oil Seals: Simrit DR1000-YH (Germany)

Filtration & Cooling

Gas Inlet Filter: 50 μm precision for particulate & moisture removal

Return Oil Filter: 10 μm magnetic filter for metal particle capture

Air Coolers: Fin-type high-efficiency stainless steel tube radiators (1590×806×350 mm)

Cooling Medium: Ethylene glycol antifreeze selected per ambient temperature

Electrical & Explosion Protection

Motor Cabling: Galvanized steel pipes for main motor to explosion-proof box

Auxiliary Cabling: Plastic-clad metal hoses for vibration/corrosion resistance

Anti-Surge Protector: Installed at power distribution cabinet input

Explosion-Proof Lighting: Integrated for safe nighttime maintenance

Explosion Protection & Certification

Electrical Enclosures: ExdeIIBT3 per ATEX Directive 2014/34/EU; CE Marking compliant

Pressure Vessels: GB 150.2-2011 / ISO 9809 / ASME Section VIII Div.1 certified

High-Pressure Piping: 06Cr19Ni10 stainless steel per GB/T14976-94 / ASME B31.3

Dispensers & Unloading Post: Exibdme II AT4 / CE / ATEX certified

Multi-Layer Safety Logic

Gas Detection & Ventilation: Automatic exhaust fan activation at 15% LEL; complete system shutdown at 25% LEL

Pressure & Temperature Interlocks: Auto-stop on abnormal inlet/outlet pressure, oil temperature, or cooling failure

ESD Integration: External emergency stop interface accepts station-wide ESD signals for coordinated power & pipeline isolation

Hydraulic Over-Pressure Protection: Relief valves prevent system pressure exceeding 315 bar

Anti-Static & Grounding: All metallic components bonded and grounded per NFPA 52

Zero Contamination Guarantee

Oil-Free Compression: Unique three-stage cylinder design with physical barrier between gas and oil chambers

No Post-Filtration Required: Gas purity maintained without downstream oil-gas separators

Seal Failure Protection: Even with complete seal degradation, oil cannot enter gas stream due to pressure differential design

Environmental Protection

Noise Reduction: Multi-layer sound insulation (high-frequency absorption + low-frequency blocking) achieves ≤75 dB @ 1m

Rain & Weather Protection: Integrated roof design with sealed panel joints; IP54 enclosure rating

Zero Emissions: Closed-loop cooling system with ethylene glycol antifreeze; no wastewater discharge

Typical Applications

Remote Mining & Industrial Sites

Ideal for open-pit mines, drilling camps, and mineral processing facilities without pipeline access. The 20ft container design withstands dust, vibration, and extreme temperatures while delivering reliable CNG fueling for haul trucks, loaders, and support vehicles.

Emergency Response & Disaster Relief

Deployable fueling units for emergency services, military operations, or humanitarian relief. Weatherproof enclosure ensures operation in rain, snow, or high-wind conditions; integrated storage cascade reduces dependency on continuous trailer supply.

Temporary Construction & Infrastructure Projects

Support CNG-powered heavy equipment fleets on highway, rail, or energy projects. Rapid deployment within 48 hours of site preparation; detachable connections simplify relocation when projects complete.

Fleet Depots Without Pipeline Access

Perfect for bus terminals, trucking companies, and municipal vehicle yards in areas without natural gas pipelines. Transport compressed gas via tube trailers; use the MRU to boost pressure from 30–200 bar to 250 bar dispensing pressure.

Agricultural & Seasonal Operations

Support CNG-powered tractors, harvesters, and transport vehicles during peak seasons. The enclosed container design protects equipment from field dust, moisture, and temperature swings while maintaining low noise levels.

CNG Corridor Development

Support highway portable CNG fueling station networks in regions with limited infrastructure. Modular container design enables phased capacity expansion by adding parallel units. Remote monitoring via TCP/IP allows centralized control of distributed fueling locations.

Warranty Coverage

Standard Warranty: 24 months from initial operation or 12 months from delivery (whichever occurs first)

Coverage: Manufacturing defects in compressors, PLC systems, hydraulic components, container structure, and dispensing equipment

Exclusions: Normal wear items (seals, filters, O-rings), improper operation, force majeure events

Included Spare Parts Package

Each MRU ships with comprehensive spare parts kit:

Medium pressure solenoid valve × 1 set

Pressure transmitter (0–40 MPa) × 1 set

Circuit breakers (20A/10A/6A/3A) × 6 units

Contactors (GMC-9, GMD-25) × 2 units

Relays × 2 units

O-rings (rubber) × 30 pieces

Check valves × 4 units

Analog I/O panels (16-way/10-way) × 2 units

Operating handles × 1 set

Commissioning & Training

On-Site Commissioning: Certified engineers travel to your location for installation supervision, system testing, and performance validation

Operator Training: 3-day comprehensive training covering PLC operation, safety procedures, routine maintenance, and troubleshooting

Documentation: Complete operation manuals, electrical schematics, P&ID diagrams, and maintenance schedules in English
