Qingdao Lenado Intelligent Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of lng refuelling station in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk customized lng refuelling station from our factory.
Product Overview

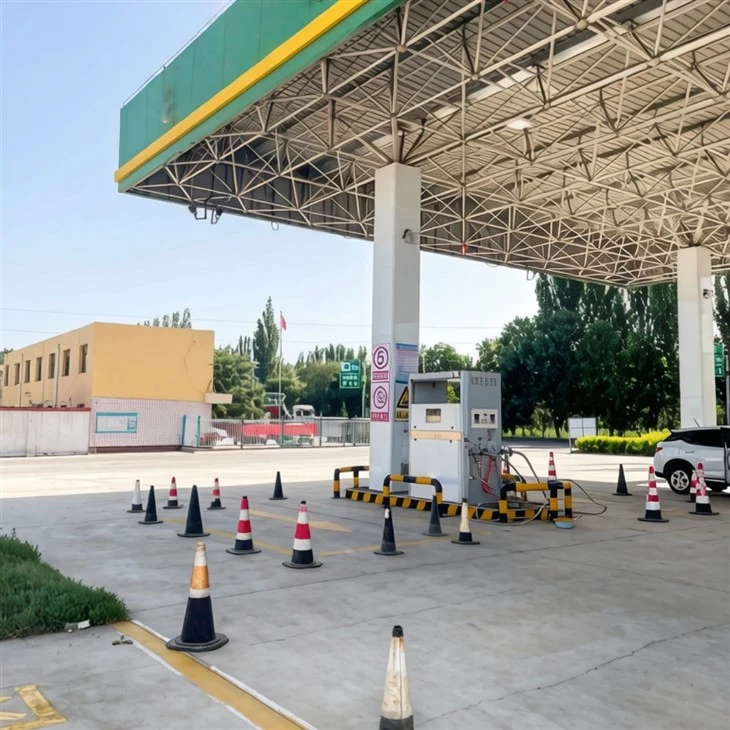

The LNG Refuelling Station is a standard integrated skid-mounted LNG dispensing system specifically designed for high-demand applications including bus depots, logistics centers, and heavy-duty truck terminals. Featuring a dual-pump configuration with simultaneous dual-nozzle dispensing capability, this station delivers exceptional filling speeds and operational reliability for commercial fleet operations.
Built with advanced PLC + variable frequency control technology, the system operates in fully automatic unattended mode, significantly reducing labor costs while ensuring consistent, safe operations. The outdoor-rated, weatherproof enclosure design makes it ideal for 24/7 operations in various environmental conditions.
Key Features
✓ Dual-Pump Redundant Design
Two independent cryogenic pumps operate simultaneously or as backup
Dual dispensing nozzles enable concurrent vehicle refuelling
If one pump requires maintenance, the other continues operation at 50% capacity
✓ High-Speed Filling Performance
Maximum flow rates up to 680-700 L/min (dual nozzle combined)
Rapid turnaround time for buses and heavy trucks
Minimizes vehicle downtime at the station
✓ Energy-Efficient Operation
Variable frequency drive (VFD) technology adjusts pump speed based on demand
Reduces energy consumption by 20-30% compared to fixed-speed systems
Lower operational costs and extended equipment lifespan
✓ Premium Cryogenic Pump Options
American ACD pumps (industry-leading reliability)
French Cryostar pumps (advanced European technology)
High-quality domestic pumps (cost-effective alternative)
All pumps designed for LNG service at -162°C
✓ Fully Automated Control
PLC-based intelligent control system
Real-time monitoring of pressure, temperature, flow rate, and liquid level
Automatic fault detection and alarm
Remote monitoring capability (optional)
Touch-screen HMI for easy operation
✓ Complete Safety Systems
Emergency shutdown (ESD) system
Gas detection sensors with automatic ventilation
Overpressure protection
Fire suppression system interface
Explosion-proof electrical components
Technical Specifications
|
Parameter |
TYL-2×15 |
TYL-2×22 |
|
Model Designation |
TYL-2×15 |
TYL-2×22 |
|
Equipment Type |
Integrated Skid-Mounted |
Integrated Skid-Mounted |
|
Working Medium |
Liquefied Natural Gas (LNG) |
Liquefied Natural Gas(LNG) |
|
Rated Dispensing Capacity |
40m³/h |
42 m³/h |
|
Maximum Flow Rate |
340 ×2 L/ min |
350×2 L/ min |
|
Temperature-Increasing Vaporizer |
300 Nm³/h |
300 Nm³/h |
|
EAG Vaporizer |
150 Nm³/h |
150 Nm³/h |
|
Submerged Pump Power |
15 kW×2 |
22 kW×2 |
|
Total Installed Power |
~30 kW |
~44 kW |
|
Control System |
PLC + Variable Frequency |
PLC + Variable Frequency |
|
Operation Mode |
Fully Automatic Unattended |
Fully Automatic Unattended |
|
Installation Type |
Outdoor |
Outdoor |
|
Number of Dispensing Nozzles |
2 (simultaneous) |
2 (simultaneous) |
|
Pump Options |
ACD/ Crvostar/ Domestic |
ACD / Crvostar/ Domestic |
Main Components
1. Cryogenic Submerged Pumps (2 Units)
Immersed directly in LNG for optimal cooling
Multi-stage centrifugal design for high efficiency
Low NPSH requirements
Optional brands: ACD (USA), Cryostar (France), or certified domestic manufacturers
2. Temperature-Increasing Vaporizer (300 Nm³/h)
Ambient air-heated design (no external power required)
Converts LNG to natural gas for station purge and EAG systems
High-efficiency finned tube heat exchanger
Prevents cold energy waste
3. EAG (Emergency Air Gas) Vaporizer (150 Nm³/h)
Safety system component for emergency depressurization
Rapidly vaporizes LNG during emergency shutdown
Ensures safe pressure relief
Ambient air heating
4. Integrated Control System
Industrial-grade PLC controller
7-inch or larger color touchscreen HMI
Variable frequency drives for both pumps
Automatic sequence control
Data logging and historical trend analysis
Remote communication interface (Modbus TCP/IP, optional 4G)
5. Cryogenic Piping & Valves
Stainless steel 304/316L construction
Vacuum-insulated piping (optional)
Cryogenic-rated ball valves and check valves
Emergency shutdown valves
6. Safety & Monitoring Systems
LNG leak detectors
Combustible gas detectors
Flame detectors (optional)
Emergency stop buttons
Automatic fire suppression interface
Lightning protection system
Process Flow
LNG Storage Tank
↓
Cryogenic Submerged Pumps (Dual)
↓
Flow Meters & Control Valves
↓
LNG Dispensers (Dual Nozzle)
↓
Vehicle Onboard Cylinders
Detailed Process
Storage: LNG is stored in an external vacuum-insulated storage tank at approximately -162°C and low pressure (0.3-0.8 MPa)
Pumping: The submerged cryogenic pumps draw LNG from the storage tank and pressurize it to dispensing pressure (0.8-1.2 MPa)
Metering & Control: High-precision cryogenic flow meters measure the exact volume dispensed, while the PLC system controls pump speed via VFD
Dispensing: LNG flows through insulated hoses to the dispensing nozzles, where operators connect to vehicle receptacles
Vaporization: The temperature-increasing vaporizer uses ambient air heat to warm a portion of LNG, providing boil-off gas for tank pressure management
Safety: The EAG vaporizer handles emergency depressurization, safely converting LNG to gas before atmospheric release
