Qingdao Lenado Intelligent Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of cng standard station compressor in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to wholesale bulk customized cng standard station compressor from our factory.
Product Introduction
As the core equipment for CNG standard stations, the CNG Standard Station Compressor introduced by Genketech Gas is specifically designed to boost low-pressure pipeline natural gas to 23 MPa (customizable up to 25 MPa upon request) for direct vehicle refueling. This unit features a highly integrated, skid-mounted structure that combines a hydraulic-driven piston, oil-free lubrication technology, and intelligent PLC control. Whether your inlet pressure is as low as 0.8 MPa or as high as 4.0 MPa, our compressor delivers stable, continuous, and highly efficient performance, all while maintaining extremely low noise levels and minimal maintenance requirements.
Key Technical Advantages
1. Highly Integrated Skid-Mounted Structure

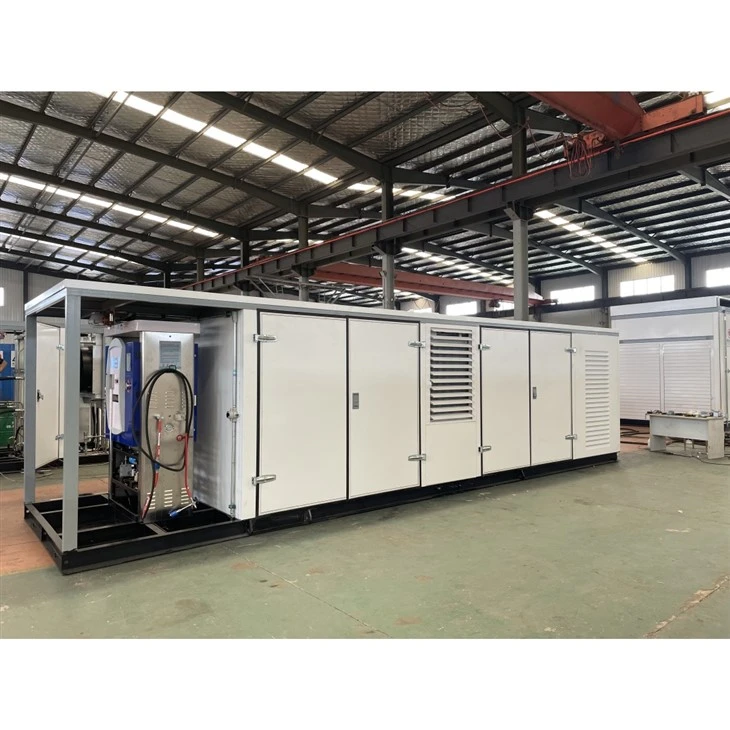

The entire system-including the compressor host, motor, cooler, control panel, and piping network-is fully integrated and mounted onto a single steel base (skid). This design significantly reduces installation time, conserves floor space, and simplifies the transportation process.
2. Hydraulic-Driven Piston & Oil-Free Lubrication Technology
- Hydraulic drive technology ensures smooth torque output and effectively reduces energy consumption.
- Oil-free lubrication technology completely eliminates the risk of lubricating oil entering the natural gas stream ; this effectively protects downstream equipment (such as dryers and dispensers) and ensures the purity of the natural gas delivered to vehicle engines.
3. Intelligent Control System
- Utilizes a PLC + Touchscreen HMI (Human-Machine Interface) combination to monitor key operating parameters-such as pressure, temperature, and flow rate-in real time.
- The soft-start function effectively reduces electrical surge currents during startup, thereby extending the service life of the motor and transmission components.
- Supports automatic start-stop operation based on the actual demands of the refueling station, with optional remote communication and monitoring capabilities available.
4. High-Efficiency Cooling & Low-Noise Design
- Employs a water-circulating air-cooling system (closed-loop circulation) to ensure stable discharge temperatures, even under hot climatic conditions. - Equipped with a professional soundproof enclosure, controlling noise levels to ≤ 85 dB(A) at a distance of 1 meter -fully complying with the environmental and noise control regulations for urban gas refueling stations.
5. Wide Inlet Pressure Range and Customization Capabilities
- Standard models are suitable for an inlet pressure range of 0.8 MPa to 4.0 MPa (please refer to the two tables below for detailed specifications).
- For requirements involving higher inlet pressures (up to 10 MPa) or different displacement capacities, we can provide customized solutions tailored to the client's specific needs.
Technical Specifications
|
No. |
Model |
Inlet Pressure (MPa) |
Outlet Pressure (MPa) |
Displacement (Nm³/h) |
Compression Stages |
Main Motor Shaft Power (kW) |
|
1 |
TYCB2500 |
0.8-1.2 |
23 |
2500 (@1.0 MPa) |
3-stage |
396 |
|
2 |
TYCB3700 |
1.3-1.6 |
23 |
3700 (@1.0 MPa) |
3-stage |
496 |
|
No. |
Model |
Inlet Pressure (MPa) |
Outlet Pressure (MPa) |
Displacement (Nm³/h) |
Compression Stages |
Main Motor Shaft Power (kW) |
|
1 |
TYCB4000 |
1.7-3.0 |
23 |
4000 (@2.5 MPa) |
3-stage |
320 |
|
2 |
TYCB4500 |
3.1-4.0 |
23 |
4500 (@3.5 MPa) |
2-stage |
360 |
Recommended Process Flow for Standard CNG Stations
The CNG station compressor serves as the core pressure-boosting component within the following typical process flow:
Pipeline Gas → Filter → Dehydration Unit → Buffer Tank → CNG Booster Compressor → Dispenser → CNG Vehicle
- Filter: Removes particulate matter and liquid droplets.
- Dehydration Unit: Lowers the dew point to prevent ice blockage under high-pressure conditions.
- Buffer Tank: Stabilizes inlet gas flow and pressure.
- Compressor (Our Equipment): Boosts pressure up to 23 MPa.
- Dispenser: Meters and dispenses the gas.
This layout ensures the safe and continuous operation of the equipment while facilitating highly efficient gas refueling operations.
Application Areas
- Standard CNG Refueling Stations (connected to urban gas pipeline networks)
- Refueling Depots for Municipal Bus or Taxi Fleets
- Dedicated CNG Refueling Facilities for Logistics or Mining Companies
- Replacement and Upgrading of Aging Oil-Lubricated Compressors - Upgrading to oil-free operation modes
Customization Capabilities
All compressors from Genketech Gas are designed and manufactured entirely in-house. We offer:
- Pressure Range: 2 MPa to 25 MPa (custom discharge pressures available)
- Flow Rate Range: 500 Nm³/h to 6000 Nm³/h or higher
- Structural Form: Fixed (base-mounted) or Skid-mounted , with optional soundproof enclosures
- Power Source Options: Electric motor, Natural gas engine (suitable for remote locations)
- Special Material Configurations: Suitable for processing gas containing corrosive components (e.g., H₂S, CO₂)
Simply provide us with your inlet pressure, required flow rate, and site operating conditions , and we will recommend-or custom-design-the ideal CNG station solution for your specific needs.
